Tunnel Seismic Prediction

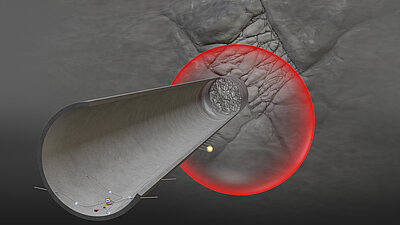

TSP - the world's most successful seismic prediction system - incorporates the wealth of more than 25 years of experience and continued innovation in supporting tunnel builders to identify their geological risk during construction.
Specially designed for underground construction, TSP's outstanding advantages help you stay ahead of your project objectives
We are pleased to carry out your project
In collaboration with our technology associates and in-house specialists, we provide state-of-the-art solutions and instruments tailored to your needs.
- 25+ years experience in all rock mass areas
- 250+ systems in 30 countries and 4 continents
- Prediction of 7,000+ km tunnels in 1,000+ projects

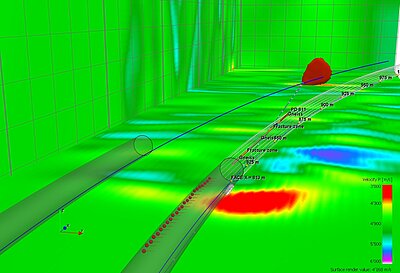

- Advanced 3-D data processing and visualisation provides automated, concise and comprehensive information.
- Timely results provide a prediction within a few hours when appropriate measures need to be taken.
- Reliable and accurate predictions have already been made in more than 2,000 tunnel projects under various geological conditions.
- The TSP system has a very high job site suitability with minimal proneness to failure.
- Reduction of probe drillings
- Minimised downtime
- Increased safety at work
- Optimised site logistics
- Hazardous weakness zones (e.g. fault, shears and fractured areas)
- Water bearing zones
- Cavities
- Changes in physical rock mass parameters
- Investigation range about 150 m from face.
- Spatial resolution 1 - 5 m.
- Positional accuracy 1 - 5 % of target distance.
- Measurement time <1.5 h.
- Results within 3 h on-site.

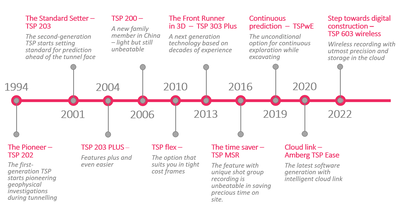

TSP 603 wireless
TSP 603 wireless is a next-generation technology that succeeds the world’s most successful family of Tunnel Seismic Prediction systems. It combines the advantages of its predecessors with the most advanced technology bringing you one step closer to digital transformation in underground construction.
These are the highlights:
- Lightweight “Ready-to-use” system
- Wireless connection to all components
- Highly accurate synchronisation (< 20 μs)
- Autonomous Wi-Fi network
- Simple installation within 30 min
- Easy to operate by site personnel
- Applicable in Drill & Blast and TBM
- Measurement time
- <60 min. @ single-shot recording
- <15 min. @ multiple-shot recording
- Best suited for TBM integration
- Optional with impact hammer source
- Specially designed for periodic and continuous data acquisition
TSP Impact
TSP Impact is a powerful mechanical Impact Source for fast and continuous seismic Data Acquisition and the ultimate expansion to TSP 603 wireless. With the combination of both technical achievements, your TBM tunnelling becomes even more efficient and safer.
How does TSP Impact work in your TBM?

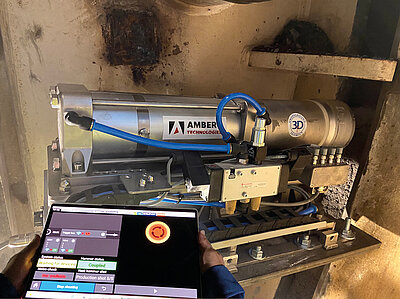

- The pneumatic impact hammer is preferably mounted to a console behind the cutter head.
- It requires the TBM’s supply of compressed air (7 bar) and power.
- After each stroke when the TBM is at a standstill, it autonomously stretches radially against the rock through an opening in the shield.
- Immediately, striking of 5-10 shots starts and lasts only 1-2 minutes.
- The hammer is completely controlled via the control box or wirelessly via the tablet.
- The hammer’s procedure of Stretch-Shot-Relax is carried out after each stroke and at a different station.
- With the data of min. 20 shot positions, an analysis and geological forecast is made.
Amberg TSP Ease
The easy-to-use software
The AI and Cloud supported software leverages the digital transformation of tunnelling.
Amberg TSP Ease Acquisition (on site)
- Acquire data by full wizard control
- Check raw data quality by AI power
- Edit easily geometry
- Upload data to Cloud

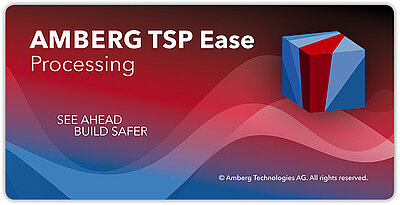

Amberg TSP Ease Processing (on site / in office)
- Get the raw data from Cloud or file
- Process data easily and user-guided
- Have the results within 2-3 hours
- Compute geomechanical parameters: P-, S-wave velocities, Poisson, Young’s, shear, bulk moduli
- Export rendered objects to a BIM capable obj-, pts- or csv-file format
Other Products

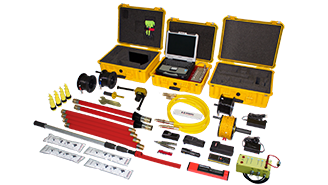

TSP 303 Plus
The TSP 303 Plus is supplied as an easy-to-use instrument and user-friendly software for data acquisition, processing and evaluation. The proven system is the predecessor of the TSP 603 wireless and the first to evaluate in 3D.
- "Ready-to-use" system
- Simple installation within 30 min
- Easy to operate by trained site engineers
- Geological forecast within 3 hours
