Amberg Tunnel Inspection




Amberg Tunnel Inspection is a comprehensive image-based tunnel inspection platform for planning, managing, capturing, and reporting on visual tunnel surface conditions. The solution comprises a desktop project authoring tool and a synchronised web-based inspection application.

Desktop application

With the desktop authoring tool, you can define the project structure, prepare background tunnel surface images, and define the feature/defect catalogue.

Web application

The connected web application allows you to digitise point, line, and area defects on tunnel surface images. You can compare inspections over time, produce reports, and involve stakeholders using different user roles and permissions.

Your advantages

  • A single platform for documenting and comparing tunnel inspections over time
  • A scalable solution, allowing you to define an unlimited number of tunnel structures
  • Full control over online user roles and stakeholder permissions
  • Extendable desktop module for processing 3D point clouds into high resolution unrolled images

Main features

  • Create geo-referenced tunnel alignments and structures
  • Define custom inspection catalogues for each project
  • Prepare and organise tunnel surface images into structures and layers
  • Synchronise tunnel surface images to the web application
  • Define inspector and viewer user roles
  • Digitise features according to your inspection catalogue
  • Export PDF, DXF, and various statistical reports

For inquiries about automatic detection of cracks and other features, please get in contact with us.

Interested in Amberg Tunnel solution?

Philippe Matter is happy to talk to you. Get in touch! Or download the software with a demo license and get hands on!

Send me an email

Downloads

Amberg Technologies – Vermessung – Geomatik – Digitale Infrastruktur – Bahntechnik – Amberg Rail – Gleisvermessung – Gleisinspektion – Gleisdokumentation – Gleisgeometrie EN 13848 – Railway Track Survey – Railway Track As-Built – Railway Track Measurement – Track Measurement Trolley – Railway Track Alignment – Track Defects – Track Documentation – Track Cant Measurement – Track Gauge Measurement – Slab Track Adjustment – Slab Track Acceptance – Railway Tamping Measurement – Structural Gauging – Railway Track Clearance – Clearance Analysis – Dynamische Durchfahrtsräume – Dynamic Clearance – Dynamic Envelope – IMU – Inertial Measurement Unit – Tunnelbau – Amberg Tunnel – Tunnelvermessung & Monitoring – Tunnel Laser Scanning – Tunnelprofile – Tunnel Excavation Control – TBM – Drill and Blast – Shotcrete – Spritzbeton – Geophysik – Amberg TSP – Tunnel Seismic Prediction – Geological Forecasting – Fault Detection – Rock Mass – Impact Hammer – Continuous Forecasting – Digitale Zwillinge – Präzisionsmessung – Monitoring-Lösungen – Civil Engineering – Innovation im Untertagebau – High-Accuracy Surveying Systems
  • Project preparation in Amberg Tunnel desktop software
  • Import standard images or images captured from tunnel inspections vehicles
  • Customisable inspection catalogue and feature styling

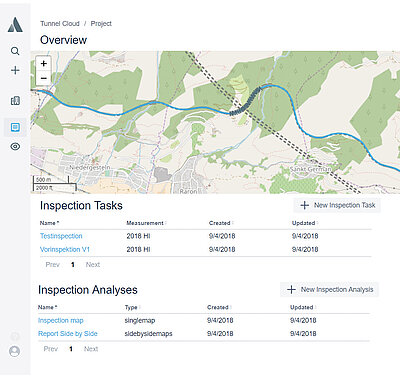

  • Project dashboard showing the latest changes on the project
  • Project overview with various background maps
Amberg Technologies – Vermessung – Geomatik – Digitale Infrastruktur – Bahntechnik – Amberg Rail – Gleisvermessung – Gleisinspektion – Gleisdokumentation – Gleisgeometrie EN 13848 – Railway Track Survey – Railway Track As-Built – Railway Track Measurement – Track Measurement Trolley – Railway Track Alignment – Track Defects – Track Documentation – Track Cant Measurement – Track Gauge Measurement – Slab Track Adjustment – Slab Track Acceptance – Railway Tamping Measurement – Structural Gauging – Railway Track Clearance – Clearance Analysis – Dynamische Durchfahrtsräume – Dynamic Clearance – Dynamic Envelope – IMU – Inertial Measurement Unit – Tunnelbau – Amberg Tunnel – Tunnelvermessung & Monitoring – Tunnel Laser Scanning – Tunnelprofile – Tunnel Excavation Control – TBM – Drill and Blast – Shotcrete – Spritzbeton – Geophysik – Amberg TSP – Tunnel Seismic Prediction – Geological Forecasting – Fault Detection – Rock Mass – Impact Hammer – Continuous Forecasting – Digitale Zwillinge – Präzisionsmessung – Monitoring-Lösungen – Civil Engineering – Innovation im Untertagebau – High-Accuracy Surveying Systems

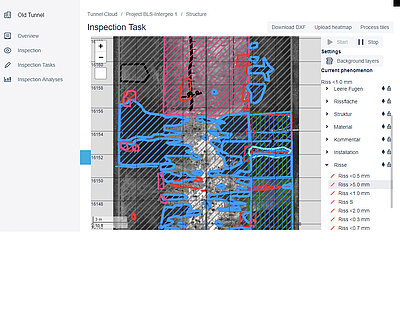

  • Manual inspection of the tunnel features
  • Digitise features using a pre-defined inspection catalogue
  • Turn on/off inspections layers from previous time periods
Amberg Technologies – Vermessung – Geomatik – Digitale Infrastruktur – Bahntechnik – Amberg Rail – Gleisvermessung – Gleisinspektion – Gleisdokumentation – Gleisgeometrie EN 13848 – Railway Track Survey – Railway Track As-Built – Railway Track Measurement – Track Measurement Trolley – Railway Track Alignment – Track Defects – Track Documentation – Track Cant Measurement – Track Gauge Measurement – Slab Track Adjustment – Slab Track Acceptance – Railway Tamping Measurement – Structural Gauging – Railway Track Clearance – Clearance Analysis – Dynamische Durchfahrtsräume – Dynamic Clearance – Dynamic Envelope – IMU – Inertial Measurement Unit – Tunnelbau – Amberg Tunnel – Tunnelvermessung & Monitoring – Tunnel Laser Scanning – Tunnelprofile – Tunnel Excavation Control – TBM – Drill and Blast – Shotcrete – Spritzbeton – Geophysik – Amberg TSP – Tunnel Seismic Prediction – Geological Forecasting – Fault Detection – Rock Mass – Impact Hammer – Continuous Forecasting – Digitale Zwillinge – Präzisionsmessung – Monitoring-Lösungen – Civil Engineering – Innovation im Untertagebau – High-Accuracy Surveying Systems

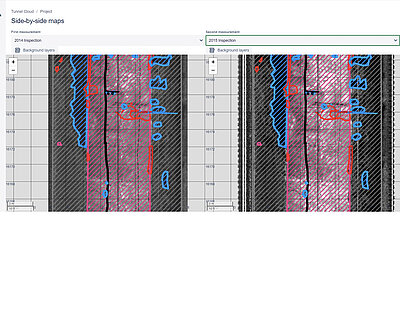

  • Visual comparison of inspections from different time periods using side-by-side and map-slide views
  • Various numerical analyses based on one or more time periods
  • Dynamic reporting with filtering options
  • Export PDF, DXF, and various statistical reports

Frequently Asked Questions

Managing inspection data for periodic tunnel inspections: importing, processing and analysing it, with tight synchronisation to Amberg Tunnel Cloud for sharing and delivery to the customer.

Yes. Besides tunnels, the inspection workflow can also be used for bridges, roads, airport runways and tanks.

Inspection fieldwork and final evaluation are done block by block, and zoom in Amberg Tunnel Cloud is based on blocks. Blocks are normally about 10 m long but can be changed.

The list of features to inspect, organised in groups. Each feature has a geometry type (point, line or area) and style settings. Catalogs export and import between projects, keeping inspections consistent.

Images (georeferenced backgrounds), inspection drawings, inspection classes and inspection files (e.g. photos taken on site), plus a validation date.

JPG, PNG, GIF and TIFF. Images without georeferencing are placed with a wizard using derolment from/to, starting chainage and chainage interval, with optional rotation.

In Amberg Tunnel Cloud, where several users can work at the same time. The office software only shows feature statistics; drawings can be imported or exported as GeoJSON.

Manually by inspection experts, per block and for the whole tunnel, on a scale of 1 (best) to 5 (very bad).

Exports (DXF, numeric CSV), Maps (Map view, Maps overlay, Maps side by side) and Statistics (by blocks, for tunnel). Results are viewed only in Amberg Tunnel Cloud.
